Android collapsing toolbar animation

Animation Collapsing Toolbar Android

Dec 28, 2018 · 2 min read

Hi, guys! Let’s talk about collapsing animation on user swipe up an application interface. Bad news. There are no native collapsing avatar view for collapsing toolbar. But for You! I have preperead two amaizing avatar collapsing demo samples with approach that doesn’t use a custom CoordinatorLayoutBehavior !

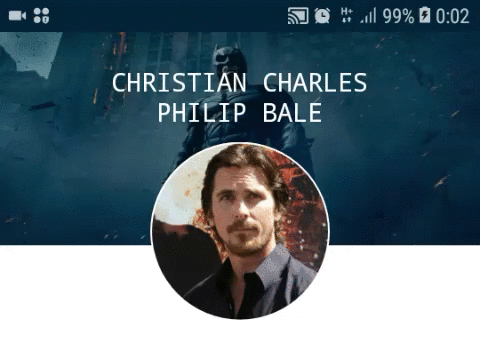

demo 1

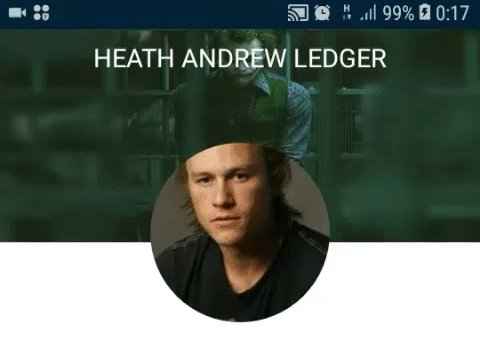

demo 2

You can view all code on my github repo CollapsingAvatarToolbarSample.

So let me to explaine the code. Instead of use use a custom CoordinatorLayoutBehavior i use an OnOffsetChangedListener which comes from AppBarLayout .

Here’s a snippet. In updateViews method i change views via calculated offset:

Avatar animate demo 1

In first d e mo for animate collapsing avatar need detect when avatar have gone to top and begin to collapse.

So, need to find avatarAnimateStartPointY and avatarCollapseAnimationChangeWeight (for convert general offset to avatar animate offset):

To convert general offset to avatr change offset using avatarCollapseAnimationChangeWeight :

So in updateViews method look how avatar change the size with change avatar’s X, Y position translation:

Avatar animate demo 2

In demo 2 avtar change his size and than animate move to right at one moment with top toolbar text became to show and moving to left.

You need to track states: TO_EXPANDED_STATE changing, TO_COLLAPSED_STATE changing, WAIT_FOR_SWITCH.

Create animation for avatar on state switch change:

Hope you have enjoyed reading the article and grabbed a lot from this. If you did, then please don’t forget to give claps on this articles.

Источник

MotionLayout – Collapsing Toolbar – Part 1

At Google IO 2018 ConstraintLayout 2.0 was announced and the biggest new addition was MotionLayout which gives us an amazing new tool for layout animations. Nicolas Roard has already published an excellent introduction to MotionLayout and I would highly recommend giving that a read to understand the basics and components of MotionLayout. In this short series we’ll look at how we can use MotionLayout to create a behaviour that we should all be familiar with: a Collapsing Toolbar.

Before we begin it is worth mentioning that there is nothing whatsoever wrong with using CollapsingToolbarLayout inside a CoordinatorLayout to achieve this behaviour. Moreover, if you already have that working in an app then there is little to be gained by changing. That said, which CoordinatorLayout provides some really useful behaviours, trying to tweak them or even create your own custom behaviours is quite difficult. It is those situations where MotionLayout may provide far greater flexibility and, my early experiments would suggest, a far easier path to achieving what you want. Furthermore, MotionLayout opens up new behaviours that would be really difficult with CoordinatorLayout.

One of the key differences between MotionLayout and many of the other animation frameworks on Android is that view animations and property animations run for a given duration. While it is possible to specify the duration and cancel a running animation, it is not possible to control a running animation based upon user input. For example, a Collapsing Toolbar should expand and collapse based upon the user scrolling, and the actual animation should follow the user’s drag. This is simply not possible with those frameworks.

Let’s begin by taking a look at the behaviour that we’re trying to emulate. Here’s a Collapsing Toolbar which is implemented using CollapsingToolbarLayout from the Material Components Library and CoordinatorLayout:

Источник

Handling Scrolls with CoordinatorLayout

CoordinatorLayout extends the ability to accomplish many of the Google’s Material Design scrolling effects. Currently, there are several ways provided in this framework that allow it to work without needing to write your own custom animation code. These effects include:

• Sliding the Floating Action Button up and down to make space for the Snackbar.

• Expanding or contracting the Toolbar or header space to make room for the main content.

• Controlling which views should expand or collapse and at what rate, including parallax scrolling effects animations.

Chris Banes from Google has put together a beautiful demo of the CoordinatorLayout and other design support library features.

The full source code can be found on github. This project is one of the easiest ways to understand CoordinatorLayout .

Add the CoordinatorLayout to your dependency list in app/build.gradle :

The CoordinatorLayout can be used to create floating effects using the layout_anchor and layout_gravity attributes. See the Floating Action Buttons guide for more information.

When a Snackbar is rendered, it normally appears at the bottom of the visible screen. To make room, the floating action button must be moved up to provide space.

So long as the CoordinatorLayout is used as the primary layout, this animation effect will occur for you automatically. The floating action button has a default behavior that detects Snackbar views being added and animates the button above the height of the Snackbar.

The first step is to make sure you are not using the deprecated ActionBar. Make sure to follow the Using the ToolBar as ActionBar guide. Also make sure that the CoordinatorLayout is the main layout container.

Next, we must make the Toolbar responsive to scroll events using a container layout called AppBarLayout:

Note: AppBarLayout currently expects to be the direct child nested within a CoordinatorLayout according to the official Google docs.

Next, we need to define an association between the AppBarLayout and the View that will be scrolled. Add an app:layout_behavior to a RecyclerView or any other View capable of nested scrolling such as NestedScrollView. The support library contains a special string resource @string/appbar_scrolling_view_behavior that maps to AppBarLayout.ScrollingViewBehavior, which is used to notify the AppBarLayout when scroll events occur on this particular view. The behavior must be established on the view that triggers the event.

When a CoordinatorLayout notices this attribute declared in the RecyclerView, it will search across the other views contained within it for any related views associated by the behavior. In this particular case, the AppBarLayout.ScrollingViewBehavior describes a dependency between the RecyclerView and AppBarLayout. Any scroll events to the RecyclerView should trigger changes to the AppBarLayout layout or any views contained within it.

Scroll events in the RecyclerView trigger changes inside views declared within AppBarLayout by using the app:layout_scrollFlags attribute:

The scroll flag used within the attribute app:layout_scrollFlags must be enabled for any scroll effects to take into effect. This flag must be enabled along with enterAlways , enterAlwaysCollapsed , exitUntilCollapsed , or snap :

enterAlways : The view will become visible when scrolling up. This flag is useful in cases when scrolling from the bottom of a list and wanting to expose the Toolbar as soon as scrolling up takes place.

Normally, the Toolbar only appears when the list is scrolled to the top as shown below:

enterAlwaysCollapsed : Normally, when only enterAlways is used, the Toolbar will continue to expand as you scroll down:

Assuming enterAlways is declared and you have specified a minHeight , you can also specify enterAlwaysCollapsed . When this setting is used, your view will only appear at this minimum height. Only when scrolling reaches to the top will the view expand to its full height:

exitUntilCollapsed : When the scroll flag is set, scrolling down will normally cause the entire content to move:

By specifying a minHeight and exitUntilCollapsed , the minimum height of the Toolbar will be reached before the rest of the content begins to scroll and exit from the screen:

snap : Using this option will determine what to do when a view only has been partially reduced. If scrolling ends and the view size has been reduced to less than 50% of its original, then this view to return to its original size. If the size is greater than 50% of its sized, it will disappear completely.

Note: Keep in mind to order all your views with the scroll flag first. This way, the views that collapse will exit first while leaving the pinned elements at the top.

At this point, you should notice that the Toolbar responds to scroll events.

If we want to create the collapsing toolbar effect, we must wrap the Toolbar inside CollapsingToolbarLayout:

Your result should now appears as:

Normally, we set the title of the Toolbar. Now, we need to set the title on the CollapsingToolBarLayout instead of the Toolbar.

Note that when using CollapsingToolbarLayout , the status bar should be made translucent (API 19) or transparent (API 21) as shown in this file. In particular, the following styles should be set in res/values-xx/styles.xml as illustrated:

By enabling translucent system bars as shown above, your layout will fill the area behind the system bars, so you must also enable android:fitsSystemWindow for the portions of your layout that should not be covered by the system bars. An additional workaround for API 19 which adds padding to avoid the status bar clipping views can be found here.

The CollapsingToolbarLayout also enables us to do more advanced animations, such as using an ImageView that fades out as it collapses. The title can also change in height as the user scrolls.

To create this effect, we add an ImageView and declare an app:layout_collapseMode=»parallax» attribute to the tag.

Bottom Sheets are supported natively in AndroidX. There are two types of bottom sheets supported: persistent and modal. Persistent bottom sheets show in-app content, while modal sheets expose menus or simple dialogs.

There are two ways you can create persistent modal sheets. The first way is to use a NestedScrollView and simply embed the contents within this view. The secondary way is to create them is using an additional RecyclerView nested inside a CoordinatorLayout . This RecyclerView will be hidden by default if the layout_behavior defined is set using the pre-defined @string/bottom_sheet_behavior value. Note also that this RecyclerView should be using wrap_content instead of match_parent , which is a new change that allows the bottom sheet to only occupy the necessary space instead of the entire page:

The next step is to create RecyclerView elements. We can create a simple Item that contains an image and a text and an adapter that can inflate these items.

Next, we create our adapter:

The bottom sheet should be hidden by default. We need to use a click event to trigger the show and hide. Note: do not try to expand the bottom sheet inside an OnCreate() method because of this known issue.

You can set a layout attribute app:behavior_hideable=true to allow the user to swipe the bottom sheet away too. There are other states including STATE_DRAGGING , STATE_SETTLING , and STATE_HIDDEN . For additional reading, you can see another tutorial on bottom sheets here.

Modal sheets are basically Dialog Fragments that slide from the bottom. See this guide about how to create these types of fragments. Instead of extending from DialogFragment , you would extend from BottomSheetDialogFragment .

There are many examples in the wild of complex bottom sheets with a floating action button that grows or shrinks or sheet state transitions as the user scrolls. The most well-known example is Google Maps which has a multi-phase sheet:

The following tutorials and sample code should help achieve these more sophisticated effects:

• CustomBottomSheetBehavior Sample — Demonstrates three-state phase shifts during scrolling of the bottom sheet. Refer to related stackoverflow post for explanation.
• Grafixartist Bottom Sheet Tutorial — Tutorial on how to position and animate the floating action button as the bottom sheet scrolls.
• You can read this stackoverflow post for additional discussion on how to mimic google maps state changes during scroll.

Getting the desired effect can take quite a bit of experimentation. For certain use-cases, you might find that the third-party libraries listed below provide easier alternatives.

In addition to the official bottom sheet within the design support library, there are several extremely popular third-party alternatives that can be easier to use and configure for certain use cases:

The following represent the most common alternatives and related samples:

• AndroidSlidingUpPanel — A third-party approach to a bottom sheet that can be considered as an alternative to the official approach. Supports AndroidX.
• Flipboard/bottomsheet — Another very popular alternative to the official bottom sheet that was widely in use before the official solution was released. Note this library doesn’t support AndroidX and relies on old Support Library.
• ThreePhasesBottomSheet — Sample code leveraging third-party libraries to create a multi-phase bottom sheet.
• Foursquare BottomSheet Tutorial — Outlines how to use third-party bottom sheets to achieve the effect used within an older version of Foursquare.

Between the official persistent modal sheets and these third-party alternatives, you should be able to achieve any desired effect with sufficient experimentation.

CoordinatorLayout is very powerful but error-prone at first. If you are running into issues with coordinating behavior, check the following tips below:

• The best example of how to use coordinator layout effectively is to refer carefully to the source code for cheesesquare. This repository is a sample repo kept updated by Google to reflect best practices with coordinating behaviors. In particular, see the layout for a tabbed ViewPager list and this for a layout for a detail view. Compare your code carefully to the cheesesquare source code.
• Make sure that the app:layout_behavior=»@string/appbar_scrolling_view_behavior» property is applied to the direct child of the CoordinatorLayout . For example, if there’s pull-to-refresh that the property is applied to the SwipeRefreshLayout that contains the RecyclerView rather than the 2nd-level descendant.
• When coordinating between a fragment with a list of items inside of a ViewPager and a parent activity, you want to put the app:layout_behavior property on the ViewPager as outlined here so the scrolls within the pager are bubbled up and can be managed by the CoordinatorLayout . Note that you should not put that app:layout_behavior property anywhere within the fragment or the list within.
• Keep in mind that ScrollView does not work with CoordinatorLayout . You will need to use the NestedScrollView instead as shown in this example. Wrapping your content in the NestedScrollView and applying the app:layout_behavior property will cause the scrolling behavior to work as expected.
• Make sure that the root layout of your activity or fragment is a CoordinatorLayout . Scrolls will not react to any of the other layouts.

There’s a lot of ways coordinating layouts can go wrong. Add tips here as you discover them.

One example of a custom behavior is discussed in using CoordinatorLayout with Floating Action Buttons.

CoordinatorLayout works by searching through any child view that has a CoordinatorLayout Behavior defined either statically as XML with a app:layout_behavior tag or programmatically with the View class annotated with the @DefaultBehavior decorator. When a scroll event happens, CoordinatorLayout attempts to trigger other child views that are declared as dependencies.

To define your own a CoordinatorLayout Behavior, the layoutDependsOn() and onDependentViewChanged() should be implemented. For instance, AppBarLayout.Behavior has these two key methods defined. This behavior is used to trigger a change on the AppBarLayout when a scroll event happens.

The best way to understand how to implement these custom behaviors is by studying the AppBarLayout.Behavior and FloatingActionButtion.Behavior sources.

In addition to using the CoordinatorLayout as outlined above, be sure to check out these popular third-party libraries for scrolling and parallax effects across ScrollView , ListView , ViewPager and RecyclerView .

There is currently no way of supporting Google Maps fragment within an AppBarLayout as confirmed in this issue. Changes in the support design library v23.1.0 now provide a setOnDragListener() method, which is useful if drag and drop effects are needed within this layout. However, it does not appear to impact scrolling as stated in this blog article.
