Design for the Dark Theme

Bringing the dark UI on Android apps

This year at I/O 2019 Google announced that Android will now support Dark Theme at OS level. At the same time we’re seeing more Google apps being rolled out with dark UI support.
This will become soon a common pattern and other apps will follow on this path.

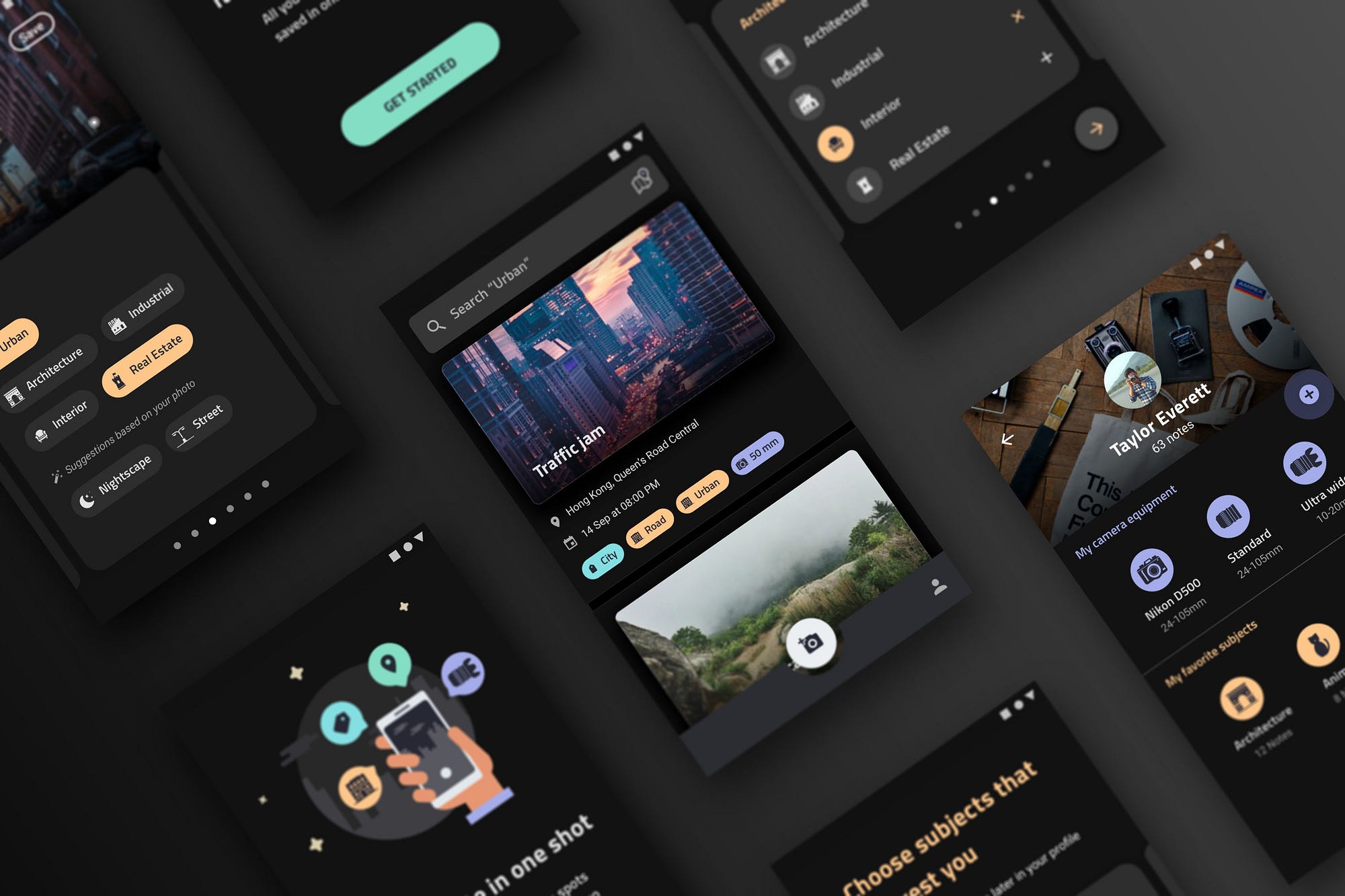

In this post I will describe how I adapted the design for the Dark Theme on one of our apps: Shutter Points.

Color optimization

The color palette

The Shutter Points UI is mainly monochromatic. This allows the photographic content to stand out and to take most of the scene.
The Primary color is used for the main navigation and five Secondary colors are used in tags to connect the photo notes to specific categories.

When applying the Dark Theme, lighter and desaturated colors are preferred to vibrant colors. Lighter tones ensure that your elements are still accessible and have a proper contrast ratio against the dark background.

With the Material Theme editor is possible to create custom tonal palettes for each of your brand colors and then to pick the right variant.

As suggested by the Material Design guidelines, a good rule of thumb is to stay around the value 200 of your tonal palettes, when using a dark theme UI.

👉 All dark theme colors should display elements with sufficient contrast, passing WCAG’s AA standard of at least 4.5:1 for body text when applied to all elevation surfaces.

The surface colors

With the new dark color palette at hand it’s time to change the surface colors.
All the surfaces in the dark theme start with the default dark grey color #121212 as baseline.
Over the component surface is applied a semi-transparent white overlay which can have a different opacity depending on the elevation.

To express different elevations we need then to tweak 2 values in the styles of our components:

• The drop shadow properties
• The surface overlay transparency

Applying the correct elevation will ensure that your elements maintain a consistent visual hierarchy, no matter which theme is used.

Wondering about how much transparency to apply?
👉 Here is a table with the relationship between the transparency values and the elevation levels (just scroll a bit down after opening the link).

Avoid large colored areas

In some situations, just converting colors from the light to the dark variants doesn’t produce a good result.

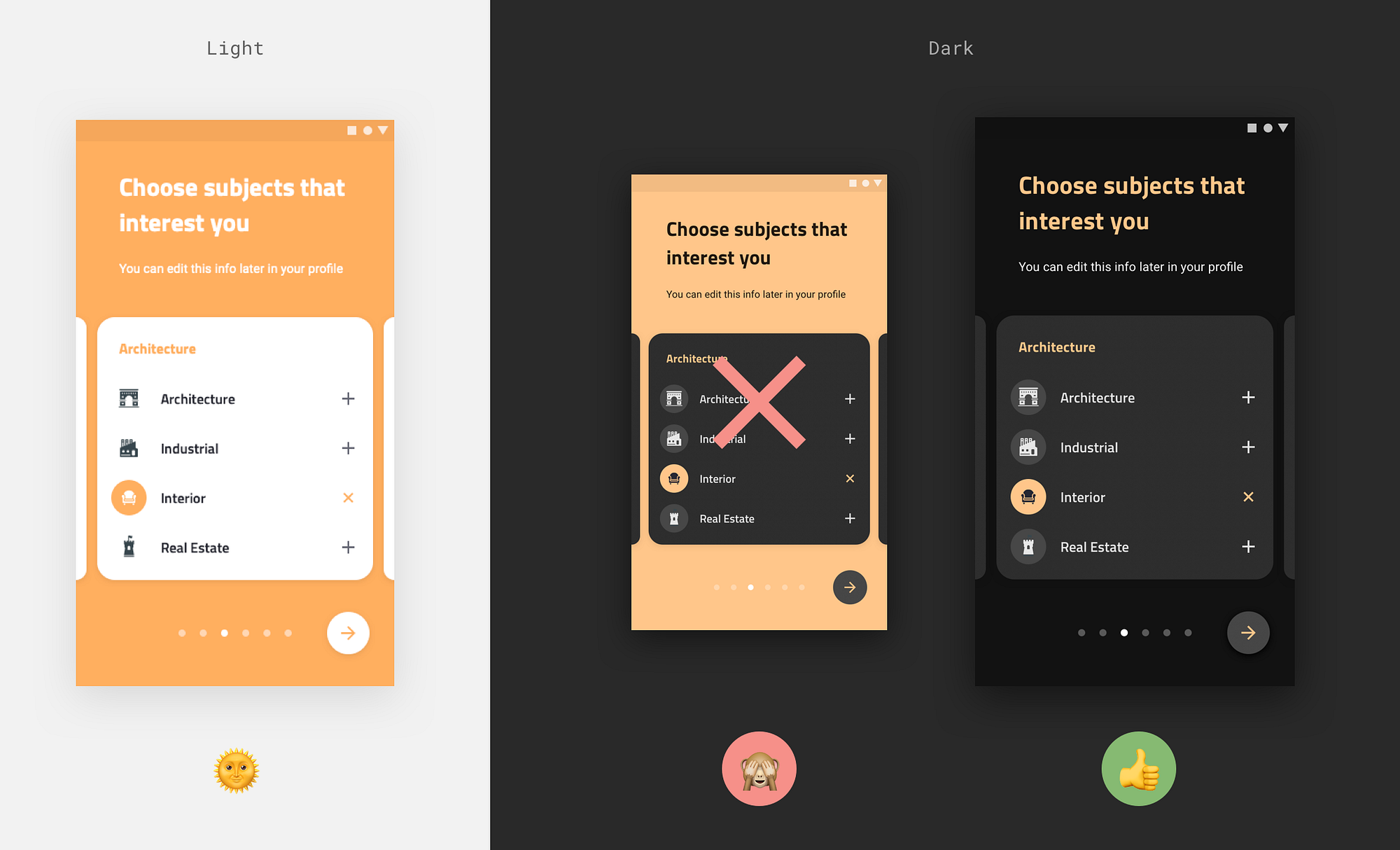

For instance in the onboarding of our app, the secondary colors are used on the background to highlight a specific context.
For the dark theme though, a full-colored background would cause too eye strain.

For those cases it was better to opt for a dark surface on the background and retain the color on the foreground title.

Texts optimization

Text colors

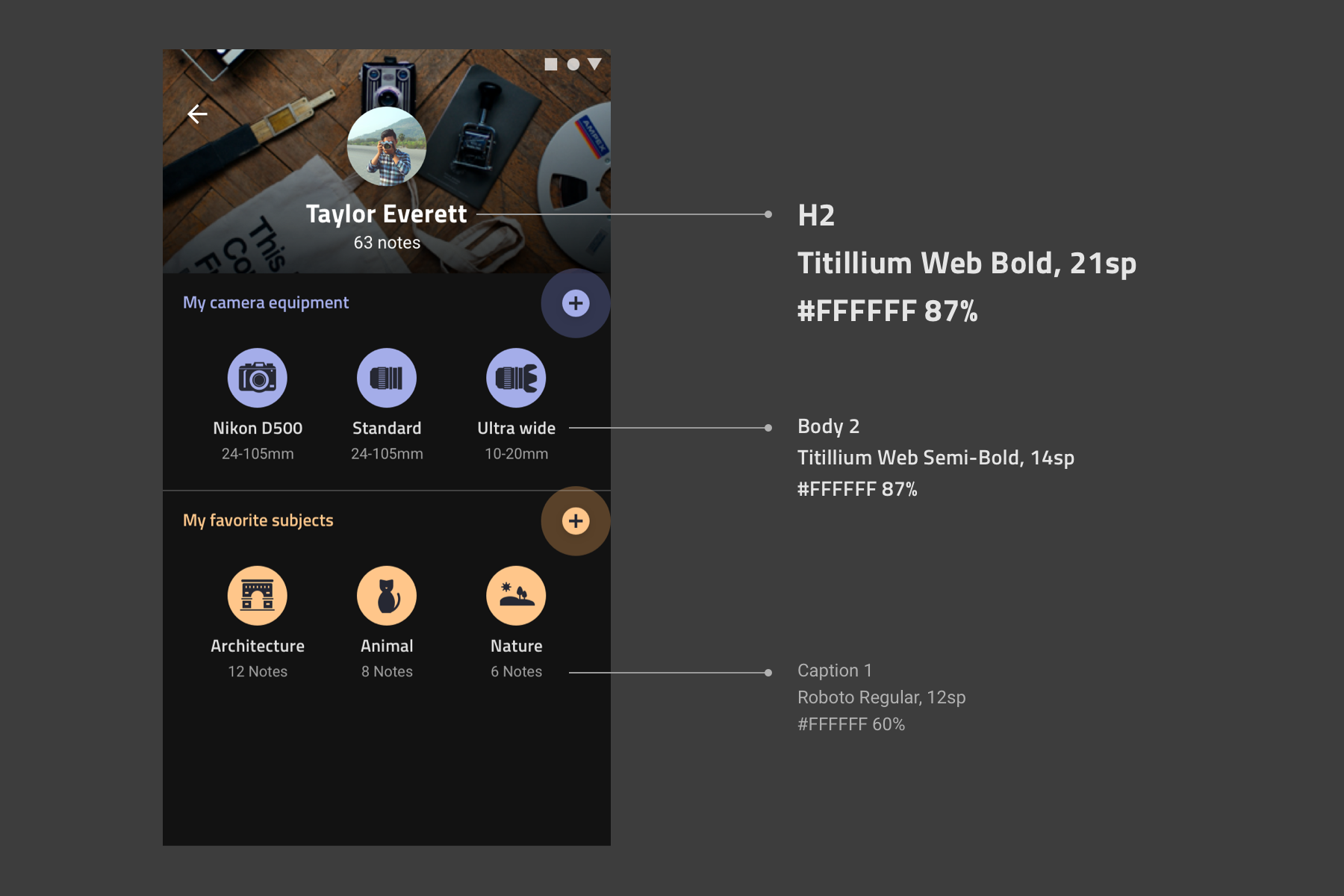

The Material Design apply 3 main emphasis to the text colors.
Those are created by changing the opacity value of white or black (for the dark theme the default color is white):

• High-emphasis text -> #FFFFFF (87% opacity)
• Medium-emphasis text -> #FFFFFF (60% opacity)
• Disabled text -> #FFFFFF (38% opacity)

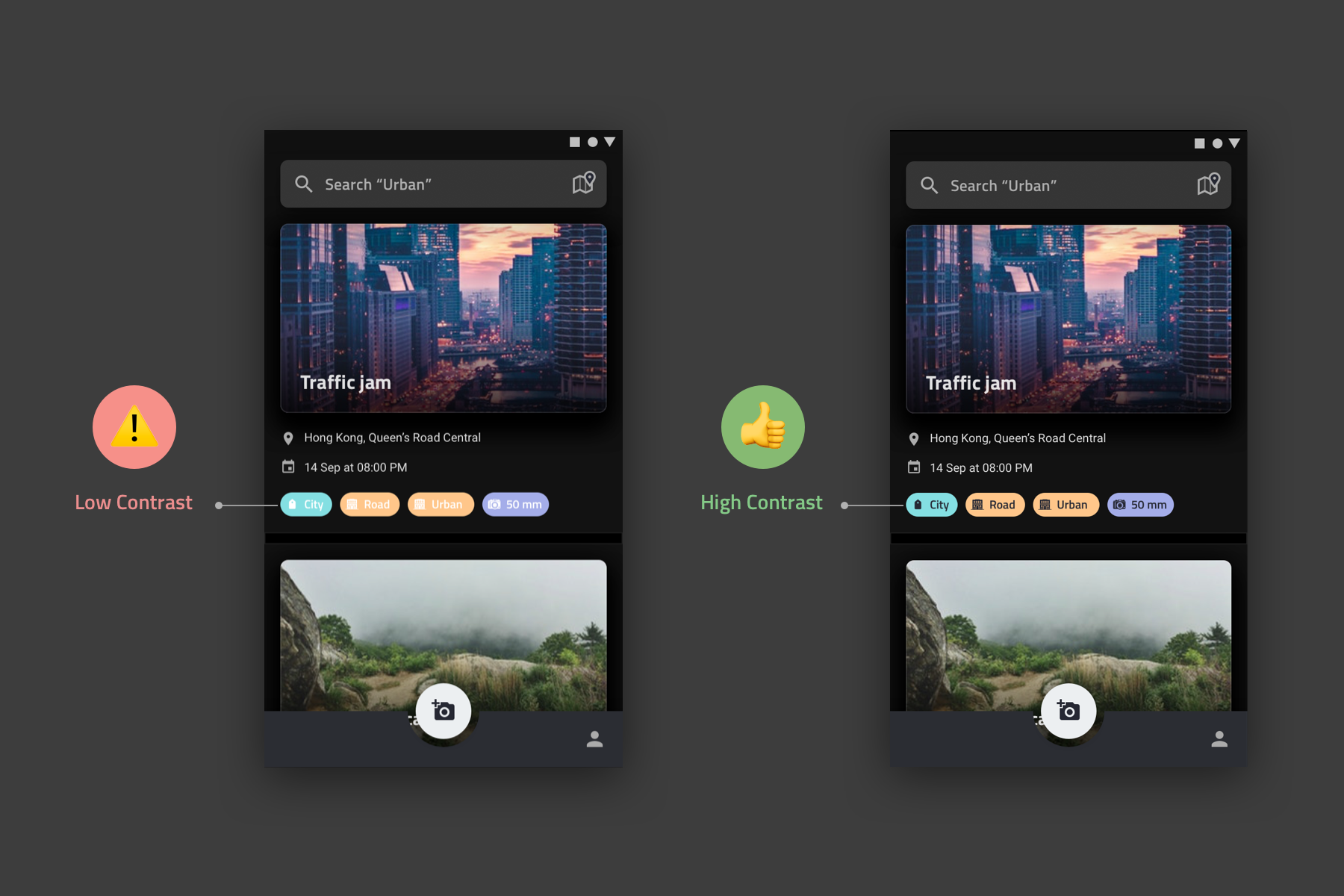

Keep an eye on the contrast ratio

All text should be optimised for readability and meet accessibility standards. The Web Content Accessibility Guidelines (WCAG 2.0) level AA requires a 4.5.1 color contrast between text and background for normal text, and 3:1 to large text.

In our case, none of the white texts were readable on the new color variants for dark theme anymore.
To ensure a good contrast ratio, all the texts and foreground elements were thus changed to black with high-emphasis.

Background colors of the same tonal palette might require a change in the foreground colors to meet accessibility standards.
The Material Color Tool help to identify at which value it’s necessary to switch from a white foreground text to a black one.

👉 Pro Tip:

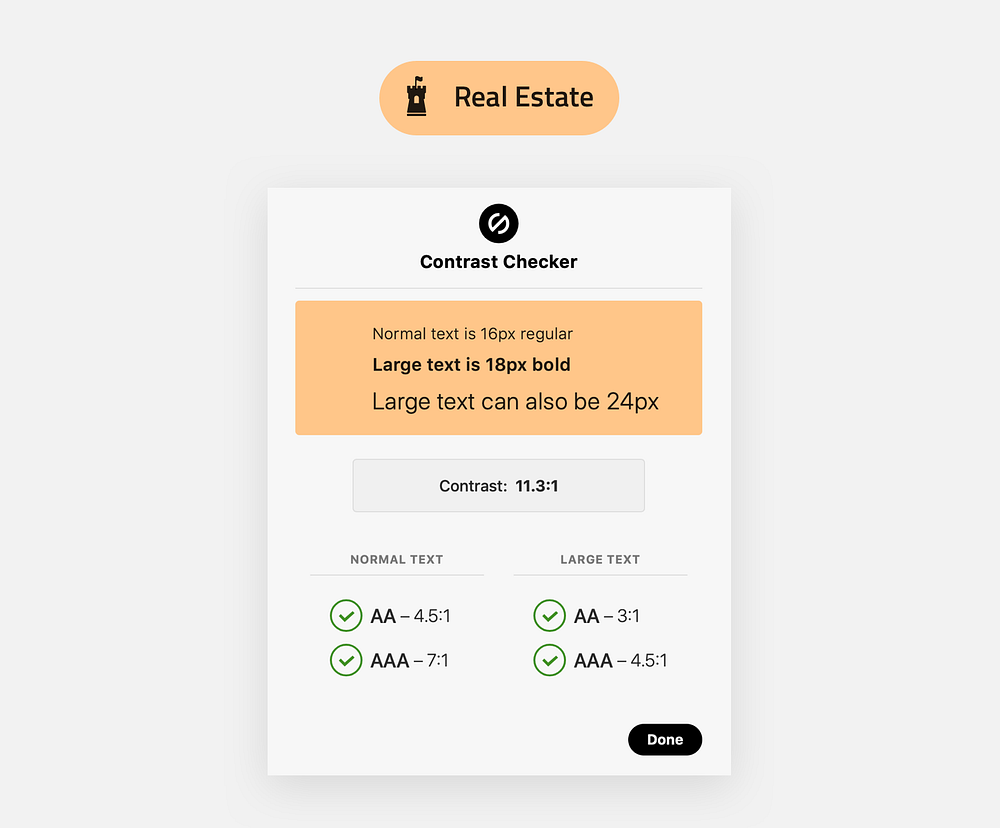

Stark is a great plugin for Sketch and Adobe XD that let you check the accessibility of your UI.

Illustrations and Animations

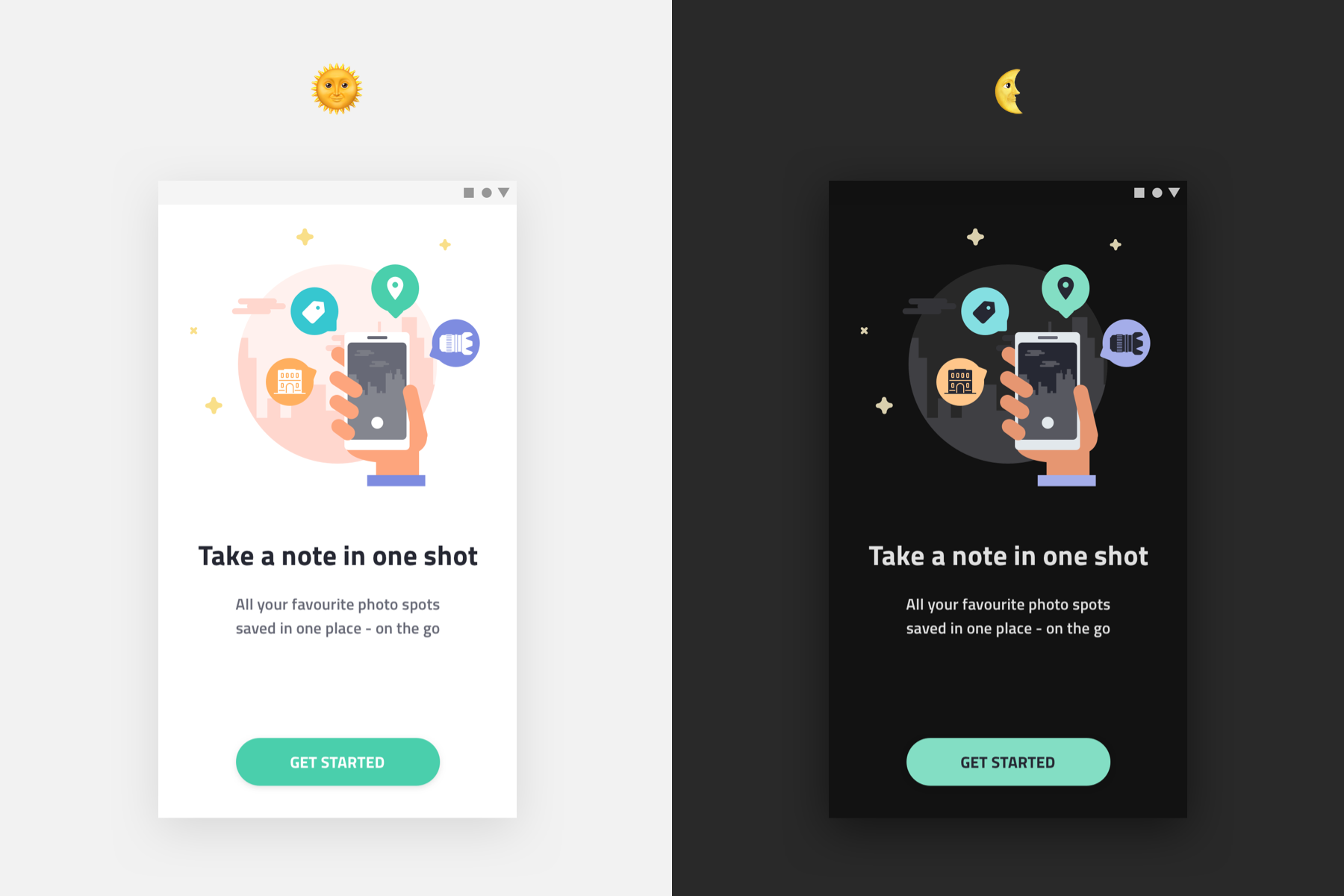

If the app contains graphical elements or illustrations, these require to be adapted to the dark theme as well.
If the illustration has a background and a subject, it might be good to completely desaturate the background colors in order to keep the focus of attention on the subject.

Lottie animations can be easily adjusted by changing the source files of AfterEffects and re-export the dark variation of the animation in a .json file.

Conclusion

With the Dark Theme brought to the OS level, apps will need to support dark UIs without breaking anything of the experience.

Dark Theme though doesn’t mean just inverting the colors.

Designers and Developers need to make sure that:

• all the UI elements meet the accessibility standards
• the visual hierarchy of the components is consistent across themes
• the brand identity is not affected by the theme change

I’m looking forward to see more apps with Dark Theme coming out soon!

Resources

Disclaimer: This article covers the Dark Theme topic from Design point of view. We’ll write about the technical implementation in a separate post, as soon as we manage to bring the update to the app. Stay tuned!

Источник

How to implement a dark theme on Android

Android 10 adds a system-wide dark theme, which preserves battery power for devices with OLED screens, reduces eye strain, and facilitates use in low-light environments.

These guidelines will show you how to implement a dark theme on Android, even on earlier versions of the platform.

1. Declare dependencies

Add the following dependencies to your project:

2. Inherit from a DayNight theme

The easiest way to support a dark theme is to inherit from a DayNight theme such as Theme.AppCompat.DayNight .

Basically, a DayNight theme is composed of a Light theme in the values directory and a Dark theme in the values-night directory.

For example, declare a Theme.MaterialComponents.DayNight.NoActionBar.Bridge :

And then, declare your AppTheme :

3. Use theme attributes for colors

When writing your layouts, use theme attributes or night-qualified resources instead of hard-coded colors to ensure that they display suitable colors in a Light theme and in a Dark theme.

For example, when you use a FloatingActionButton , the default backgroundTint is ?attr/colorAccent so the tint should be ?android:attr/textColorPrimaryInverse to ensure that the contrast ratio between the icon and its background is eligible:

In a Light theme, it will display a #ffffffff icon on a #ff009688 background.

In a Dark theme, it will display a #de000000 icon on a #ff80cbc4 background.

4. Allow users to change the app’s theme

Your app should let the user switch between themes, which map directly to one of the following modes:

Use AppCompatDelegate.setDefaultNightMode to switch the theme for all components in your app. Please note that it is not saved when the app is killed so you should use Settings to save the user’s choice.

For example, use the following code in your Activity to change the night mode:

And then, use the following code in your Application to restore the night mode:

5. Run your app

That’s it, you are ready to run your app and enjoy a dark theme!

Sample

For a complete example, check out my sample on GitHub.

Источник

Dark Theme with MDC

Using Material Design Components to implement a dark theme

In the previous blog posts, Nick Rout went through the basis of Material Theming, and the pillars of color, typography and shape.

Material Theming with MDC: Color

Color theming on Android using the MDC library

Material Theming with MDC: Type

Type theming on Android using the MDC library

Material Theming with MDC: Shape

Material Theming is a way to customize Material Components to align with your brand. A Material theme includes color…

This post is going to build upon that to see how we can adapt our apps to support dark themes.

User selectable dark themes were added to the Android platform in Android 10, but that does not mean they’re new to app developers. The default theme for Android devices was dark up until Android 5.0 (Lollipop)!

The difference last year was that the platform added a device-wide setting. Meaning that the user has additional control over the theme of the device, but also of apps.

Alongside the recent device-wide setting, we now also have comprehensive design guidance on material.io, which we will talk about later in this blog post.

Why support dark theme?

First up, why support a dark theme at all? The Material.io page on Dark Theme has a good summary on some of the technical benefits (emphasis mine):

Dark themes reduce the luminance emitted by device screens […]. They help improve visual ergonomics by reducing eye strain, adjusting brightness to current lighting conditions, and facilitating screen use in dark environments — all while conserving battery power [for OLED displays].

The most important reason though is that your users want it. The Android team added the system-wide dark theme setting because it consistently came up as a top requested feature by users.

Now that I’ve convinced you to support dark themes in your app, let’s look at how you add one…

Quick start

To add a dark theme to your app, use Material Design Components (MDC) for Android’s support:

#1: Change your theme

You need to change your theme to extend from one of the Theme.MaterialComponents. DayNight themes:

#2: Choose what mode to be in (optional)

This step is optional, but allows you to support devices running versions of Android before Android 10. Since most devices before Android 10 do not have a system-level dark theme setting *, apps can provide their own in-app setting to allow users to choose what theme to use per-app.

This is also still useful on Android 10+, as it allows users to override the system setting as they wish. As an example, imagine that the user sets their device theme to be controlled on a time schedule, but they know that they always want their social apps to use a dark theme.

To help with this, AppCompat (which MDC uses) provides an API to set the chosen mode: AppCompatDelegate.setDefaultNightMode() . Commonly this would be called whenever a preference changes.

* Not strictly true. Some device manufacturers have added a system-level dark theme to their devices which are running Android 9 (and below). Unfortunately there’s no way to determine this at runtime.

If you would like to read more about how the night mode feature in AppCompat works, have a look at this blog post:

DayNight — Adding a dark theme to your app

The DayNight functionality in AppCompat allows your app to easily switch between a dark and light theme.

#3: Test!

And there we have the basis of a dark theme! It’s time to test it out by checking each part of the app in both light and dark themes. Look out for any dark text on dark backgrounds, and hardcoded colors which do not have enough contrast against the dark backgrounds (typically, greys).

If you are using hard coded color values in your app, I recommend reading this blog post by Nick Butcher, which talks about preferring theme attributes:

Android Styling: Prefer Theme Attributes

Theme attribute all the things

We also cover this in our ‘Theming with Style’ talk at Android Dev Summit ‘19:

Material Dark Theme

Now let’s take a look at the design characteristics of dark theme which are described on Material.io.

Grey vs black

The first thing you might notice is that the default background for apps in dark theme is not black, but instead a dark grey: #121212 .

There’s lots of discussions about why we chose grey vs black, especially since the platform in Android 10 uses a black background. This is largely a trade-off between usability vs power savings.

Using a pure black #000000 color as the background in the platform, allows the system apps and surfaces to use as little power as possible when they’re open on OLED displays. These system surfaces tend to be quite simple, typically just text and simple icons, so to battle contrast issues we can adjust the text and icon colors to suit.

In apps though, your surfaces can contain anything: complex colorful vector animations, bright imagery, contrasting branded surfaces and lots more. Placing these against a pure black background means that the resulting contrast is much higher, which can increase eye strain. Unlike text and icons we mentioned above, it is often difficult or unwanted to tint/re-color these types of content to reduce the contrast, meaning that a lighter background is the solution.

Color palette

Next up, let’s look at your app’s color palette. It’s likely that your app’s color palette has been chosen based on the assumption of a light/white background, so we likely need to make some tweaks to the color palette when the app is running in a dark theme.

Recap on Material color system

We’re going to be talking about color tones a lot below, so here’s a quick recap on the Material color system. It defines colors as a series of tones within each color. The tones are numbered from 50 (lightest, least saturated tone), to 900 (darkest, most saturated tone). Here’s the baseline teal and indigo color tones:

You can also play around in the Material color tool to get an idea of how the tones for different colors vary. Nick Rout also wrote up a deep-dive on the color system here.

colorPrimary

Your app’s primary color is the most displayed color (other than background and surface colors), so we need to make sure that it is legible in dark themes. Typically in a light theme, your light theme would be a 500 tone of a color, whereas in a dark theme we recommend a less saturated and more luminous tone, typically 200, but can be up to 50 depending on the hue.

For your colorPrimaryVariant , we recommend using the colorPrimary from your light theme. As a rough guide:

These values are just a starting point though. You should ensure that the chosen colors have a WCAG AA contrast ratio of at least 4.5 :1 against the background/surface color at all used elevation levels (more on that later).

The Material Color Tool is handy for experimenting with colors.

colorSecondary

For your secondary color, it’s the same process as colorPrimary , by using a less saturated and more luminous tone of the same color.

The baseline Material dark theme treats the colorSecondaryVariant a little differently to colorPrimaryVariant , using the same tone for both colorSecondary and colorSecondaryVariant .

Again, as a rough guide:

Surface colors

Bold colored surfaces can be a great way to express your brand in commonly used components, such as cards. While vivid and bold colors work great against a white background, their legibility against a dark background isn’t so great.

If the device and/or app has been set to use a dark theme, the app should read this as an intention from the user that they want a muted, less vivid color scheme at that moment.

With that intention in mind, even if we use muted 50– 200 color tones for branded surfaces, it can still be too bold and emit too much light for a dark theme:

So what should you do? There’s two options, which can be used together:

Use primary surface

The first step is the obvious one of not using bright, colorful surfaces when in dark theme. Material Design Components for Android makes this simple with its PrimarySurface styles, which switch between the Primary color in light theme and Surface color in dark theme.

Let’s look at an example. Say we have a BottomAppBar like the above example, we can use the Widget.MaterialComponents.BottomAppBar.PrimarySurface style:

If you have a non-MDC view which you would like to be treated similarly, you can use the ?attr/colorPrimarySurface theme attribute:

In fact, the components which use a bright surface color in light themes (such as MaterialToolbar ), default to the same behavior. You may find that you don’t need to do any work here.

Branded surface color

To subtly express your brand color on all of your app’s surface, you can set your colorSurface to be a calculated color of colorPrimary with 8% opacity, composited over colorSurface , when in dark theme.

For an example using the baseline theme’s values:

This allows your brand to subtly be applied across the app, while still keeping the intention of a muted, low light color palette.

Crafting dark theme example

If you’d like to see an example of taking a light-themed app and adding a dark theme, watch Liam Spradlin’s video here, where he crafts a dark theme for the Reply Material Study app:

We’ve just gone through a lot of information about choosing colors, but how should you set these in your Android app?

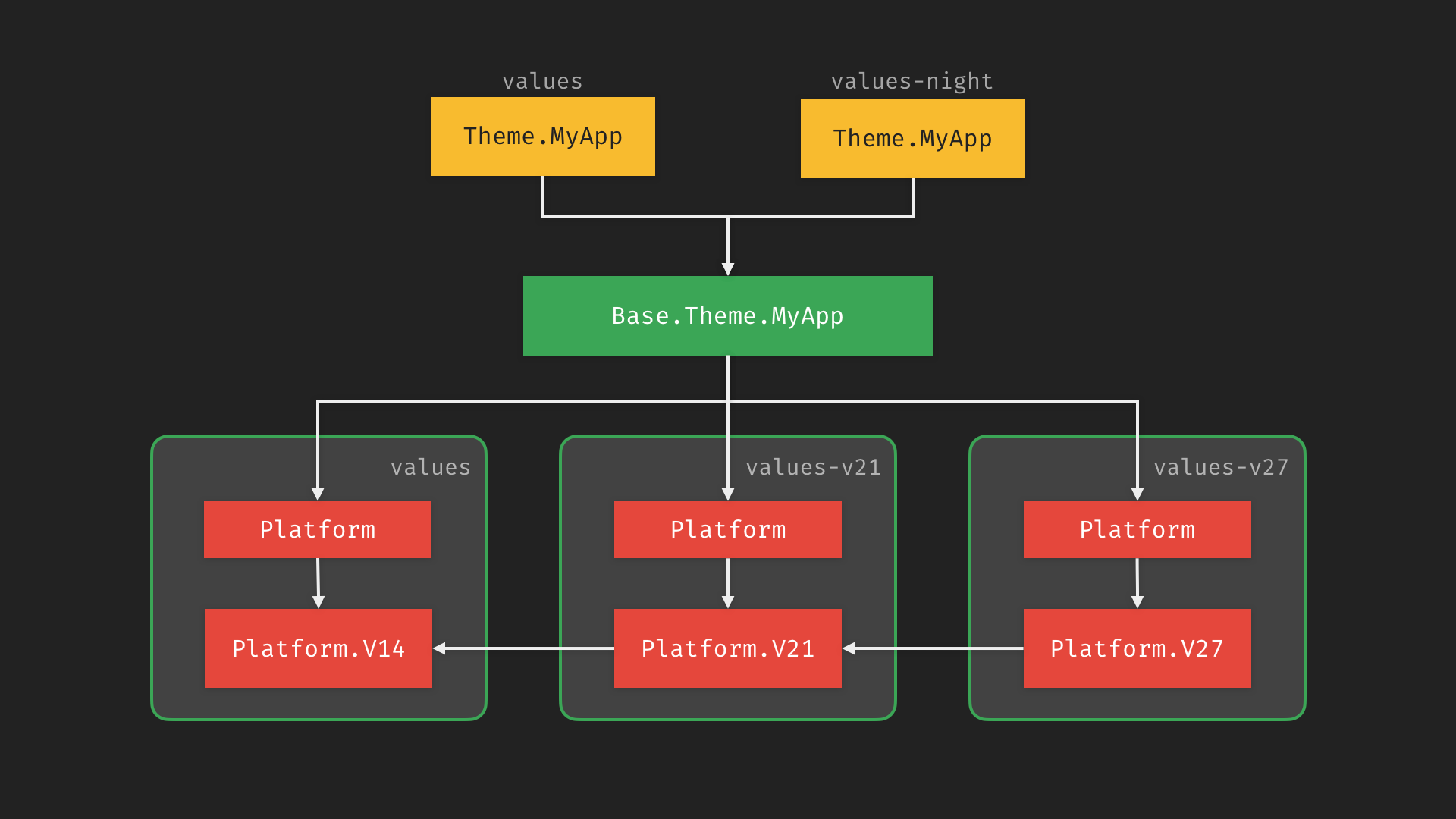

We’re going to rely on some organisation of our themes. We’re going to use a theme structure like this:

This structure enables us to easily vary the theme in light and dark themes, while also allowing us to re-use common content in the base theme.

If you’d like to know more about this structure, I recommend watching the Developing Themes with Style talk which Nick Butcher and I gave last year.

Elevation overlays

Earlier in this post, we mentioned in a few places about testing contrast against all elevation levels. You might have been wondering why that is, when elevation is about lifting surfaces to cast shadows, right? Well yes, elevation is about lifting surfaces, but it’s not just about casting shadows.

Shadows in the Material system are cast by numerous light sources, and as we lift surfaces (using elevation property), we are lifting them towards the light sources. Just like the world around us, shadows occur when those light sources are blocked by surfaces. Similarly, the closer that a surface is to a light source the more that the surface is lit, changing its perceived color.

For light surface colors, such as white, that change is imperceptible since it is already light. For dark surfaces though, it can have a large effect:

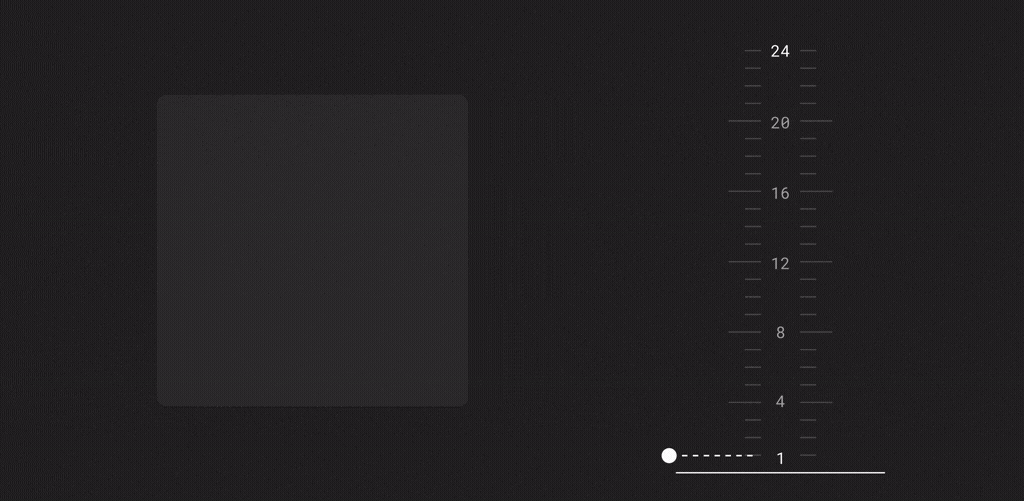

This is where elevation overlays come into play. The behavior of lightening the surface color is expressed as compositing a translucent white overlay of onSurface, over the surface color. The greater the elevation, the more opaque the overlay.

Going back to address the earlier points, this is why you need to test at the different elevations. As the visual surface changes based on the elevation, you need to make sure that any foreground colors provide enough contrast. Ideally you set a single onSurface color which works for all of the elevation values used in your app.

Widget support

All of the components in Material Design Components support elevation overlays automatically, including: Top App Bar, Bottom App Bar, Bottom Navigation, Tabs, Card, Dialog, Menu, Bottom Sheet, Navigation Drawer & Switch.

This means that using the standard elevation APIs will automatically apply an elevation overlay, as long as the background is set to ?attr/colorSurface (either explicitly or using a surface style variant). Going back to our earlier example:

There are some theme attributes which you can set to change the behavior of elevation overlays:

• ?attr/ elevationOverlayEnabled allows you to turn on/off elevation overlays for your theme. This defaults to true in dark theme, false in light theme.
• ?attr/ elevationOverlayColor allows you to change the color of any elevation overlays. This defaults to ?attr/colorOnSurface .

You shouldn’t really need to change these values though.

Custom views

So that’s great, but what if you’ve got a custom view which needs to support elevation overlay? Well you’re in luck. All of the elevation overlay support is built into MaterialShapeDrawable , with a bit of plumbing in your view:

OK Google, goodnight 🌚

Hopefully by the end of the blog post you’ve gained a understanding of what you need to do to add a dark theme to your app. If there’s anything you found difficult when implementing a dark theme, leave a comment below or reach out to us on Twitter @MaterialDesign and @AndroidDev.
