Mac mini Server (Late 2012) — Technical Specifications

Size and Weight

  • Height: 1.4 inches (3.6 cm)
  • Width: 7.7 inches (19.7 cm)
  • Depth: 7.7 inches (19.7 cm)
  • Weight: 2.9 pounds (1.3 kg) 1

Processor

  • 2.3GHz quad-core Intel Core i7 (Turbo Boost up to 3.3GHz) with 6MB L3 cache
    • Configurable to 2.6GHz quad-core Intel Core i7 (Turbo Boost up to 3.6GHz).

Storage

  • Two 1TB (5400-rpm) hard drives 2
    Configurable to one or two 256GB solid-state drives.

Graphics

Memory

  • 4GB (two 2GB) of 1600MHz DDR3 memory
    Configurable to 8GB or 16GB.

Video Support

  • Thunderbolt digital video output
    • Native Mini DisplayPort output
    • DVI output using Mini DisplayPort to DVI Adapter (sold separately)
    • VGA output using Mini DisplayPort to VGA Adapter (sold separately)
    • Dual-link DVI output using Mini DisplayPort to Dual-Link DVI Adapter (sold separately)

Audio

  • Audio line in minijack (digital/analog)
  • Audio line out/headphone minijack (digital/analog)
  • HDMI port supports multichannel audio output
  • Support for Apple iPhone headset with microphone
  • Built-in speaker

Connections and Expansion

  • Thunderbolt port (up to 10 Gbps)
  • FireWire 800 port (up to 800 Mbps)
  • Four USB 3 ports (up to 5 Gbps)
  • HDMI port
  • SDXC card slot
  • Gigabit Ethernet port
  • Audio in/out
  • IR receiver

Communications

  • Wi-Fi
    802.11n Wi-Fi wireless networking; 3 IEEE 802.11a/b/g compatible
  • Bluetooth
    Bluetooth 4.0 wireless technology
  • Ethernet
    10/100/1000BASE-T Ethernet (RJ-45 connector)

Electrical and Operating Requirements

  • Line voltage: 100-240V AC
  • Frequency: 50Hz to 60Hz, single phase
  • Maximum continuous power: 85W
  • Operating temperature: 50° to 95° F (10° to 35° C)
  • Storage temperature: -40° to 116° F (-40° to 47° C)
  • Relative humidity: 5% to 95% noncondensing
  • Operating altitude: tested up to 10,000 feet
  • Typical acoustical performance, sound pressure level (operator position): 4
    • 16 dBA at idle

Limited Warranty and Service

Your Mac mini comes with 90 days of free telephone support and a one-year limited warranty. Purchase the AppleCare Protection Plan to extend your service and support to three years from your computer’s purchase date. Only the AppleCare Protection Plan provides you with direct telephone support from Apple technical experts and the assurance that repairs will be handled by Apple-authorized technicians using genuine Apple parts. For more information, visit Apple Support or call 800-823-2775.

Читайте также:  Пресет для lightroom айфон

In the Box

  • Mac mini
  • HDMI to DVI Adapter
  • Power cord

Included Software

  • OS X Server: Includes Server, Xsan, File Server, Calendar Server, Contacts Server, Mail Server, Web Server, NetInstall, DNS, DHCP, Open Directory, Profile Manager, VPN Server, and Wiki Server. Learn more about OS X Server
    • File Sharing
    • Profile Manager
    • Time Machine
    • Wiki Server
    • Calendar Server
    • Contacts Server
    • Mail Server
    • Messages Server
    • Xsan 3
    • VPN Server
    • Software Update Server
  • OS X Mountain Lion: The world’s most advanced desktop operating system. Learn more
    • Mac App Store
    • Safari
    • Mail
    • Messages
    • Calendar
    • Contacts
    • Reminders
    • Notes
    • Time Machine
    • FaceTime
    • Photo Booth
    • Game Center
    • iTunes
    • iLife: iPhoto, iMovie, and GarageBand.

Configure to Order

Configure your Mac mini with these options, only at the Apple Online Store.

  • 2.6GHz quad-core Intel Core i7 processor
  • 8GB DDR3 memory upgrade
  • 16GB DDR3 memory upgrade
  • One or two 256GB solid-state drives
  • Apple Remote

Environment

Apple takes a complete product life cycle approach to determining our environmental impact. Learn more

Mac mini is designed with the following features to reduce its environmental impact:

  • BFR-free
  • PVC-free 5
  • Highly recyclable aluminum enclosure
  • Meets ENERGY STAR 5.2 requirements
  • Rated EPEAT Gold 6

Apple and the Environment

Learn more about Apple’s dedication to reducing the environmental impact of our products and process. Or read our Product Environmental Reports for detailed information on the environmental performance of every Apple product.

Recycling

Apple takes a holistic view of materials management and waste minimization. Learn more about how to recycle your Mac or PC.

Acoustic Performance

DECLARED NOISE EMISSIONS in accordance with ISO 9296

Источник

Mac mini Server (Mid 2011) Technical Specifications

Size and Weight

The perfect size for a server.

  • Height: 1.4 inches (3.6 cm)
  • Width: 7.7 inches (19.7 cm)
  • Depth: 7.7 inches (19.7 cm)
  • Weight: 3.0 pounds (1.37 kg) 1

Processor and Memory

Powered by a quad-core Intel Core i7 processor and DDR3 memory.

Processor
2.0GHz quad-core Intel Core i7 with 6MB on-chip shared L3 cache

Memory
4GB of 1333MHz DDR3 memory

Configurable to 8GB, only at the Apple Online Store.

Storage

Dual 500GB hard drives come standard.

Dual 500GB (7200-rpm) hard drives 2
Configurable to dual 750GB (7200-rpm) hard drives, single or dual 256GB solid-state drives, or 256GB solid-state drive and 750GB (7200-rpm) hard drive, only at the Apple Online Store.

Graphics

Plenty of power for everyday tasks.

Intel HD Graphics 3000 processor with 384MB of DDR3 SDRAM shared with main memory 3

Video Support

Works with almost any display or HDTV.

  • Thunderbolt port with support for up to 2560-by-1600 resolution
  • HDMI port with support for up to 1920-by-1200 resolution
  • DVI output using HDMI to DVI Adapter (included)
  • Support for dual display and video mirroring
Читайте также:  Номер не определяется как айфон

Audio

  • Audio line in minijack (digital/analog)
  • Audio line out/headphone minijack (digital/analog)
  • HDMI port supports multichannel audio output
  • Support for Apple iPhone headset with microphone
  • Built-in speaker

Connections and Expansion

A new Thunderbolt port, an HDMI port, and plenty of peripheral ports.

  • Thunderbolt port (up to 10 Gbps)
  • FireWire 800 port (up to 800 Mbps)
  • Four USB 2.0 ports (up to 480 Mbps)
  • HDMI port
  • SDXC card slot
  • Gigabit Ethernet port
  • Audio in/out

Communications

The latest Wi-Fi, Bluetooth, and Ethernet technologies.

Wi-Fi
802.11n Wi-Fi wireless networking 4 ; IEEE 802.11a/b/g compatible

Bluetooth
Bluetooth 4.0 wireless technology

Ethernet
10/100/1000BASE-T Ethernet (RJ-45 connector)

Electrical and Operating Requirements

  • Line voltage: 100-240V AC
  • Frequency: 50Hz to 60Hz, single phase
  • Maximum continuous power: 85W
  • Operating temperature: 50° to 95° F (10° to 35° C)
  • Storage temperature: -40° to 116° F (-40° to 47° C)
  • Relative humidity: 5% to 95% noncondensing
  • Maximum altitude: 10,000 feet
  • Typical acoustical performance
    • Sound pressure level (operator position): 17 dBA at idle 5

Mac mini and the Environment

Apple takes a complete product life cycle approach to determining our environmental impact. Learn more

Mac mini is designed with the following features to reduce its environmental impact:

  • BFR-free
  • PVC-free 6
  • Highly recyclable aluminum enclosure
  • Meets ENERGY STAR 5.2 requirements
  • Rated EPEAT Gold 7

Apple and the Environment
Learn more about Apple’s dedication to reducing the environmental impact of our products and process. Or read our Product Environmental Reports for detailed information on the environmental performance of every Apple product.

Recycling
Apple takes a holistic view of materials management and waste minimization. Learn more about how to recycle your Mac or PC.

Accessories

  • iWork
  • Aperture
  • Logic Express
  • Final Cut Pro X

Displays and Graphics

  • Apple Thunderbolt Display
  • Apple Mini DisplayPort to DVI Adapter
  • Apple Mini DisplayPort to VGA Adapter
  • Apple Mini DisplayPort to Dual-Link DVI Adapter

AirPort and Wireless

  • AirPort Express Base Station
  • AirPort Extreme Base Station
  • Time Capsule
  • Apple Magic Trackpad
  • Apple Wireless Keyboard
  • Apple Magic Mouse

Other Accessories

  • Apple MacBook Air SuperDrive
  • Apple Keyboard
  • AppleCare Protection Plan

Источник

Mac mini Server (конец 2012 г.) — Спецификации

Размеры и вес

  • Высота: 3,6 см
  • Ширина: 19,7 см
  • Длина: 19,7 см
  • Вес: 1,3 кг 1

Процессор

  • Четырёхъядерный процессор Intel Core i7 с тактовой частотой 2,3 ГГц (ускорение Turbo Boost до 3,3 ГГц) с кэш-памятью третьего уровня объёмом 6 МБ

Накопители

  • Два жёстких диска объёмом 1 ТБ (5400 об/мин) 2

Графический процессор

  • Графический процессор Intel HD Graphics 4000

Память

  • 4 ГБ (два модуля по 2 ГБ) памяти DDR3 1600 МГц

Поддерживаемые форматы видеозаписей

  • Цифровой видеовыход Thunderbolt
    • Штатный выход Mini DisplayPort
    • Выход DVI через адаптер Mini DisplayPort-DVI (продаётся отдельно)
    • Выход VGA через адаптер Mini DisplayPort-VGA (продаётся отдельно)
    • Двухканальный выход DVI через адаптер Mini DisplayPort–двухканальный DVI (продаётся отдельно)

Аудио

  • Аудиовход «мини-джек» (цифровой и аналоговый сигнал)
  • Аудиовыход/разъём для наушников «мини-джек» (цифровой и аналоговый сигнал)
  • Порт HDMI поддерживает системы многоканального звука
  • Поддержка гарнитуры Apple iPhone с микрофоном
  • Встроенный динамик
Читайте также:  Как позвонить абоненту если он тебя заблокировал айфон

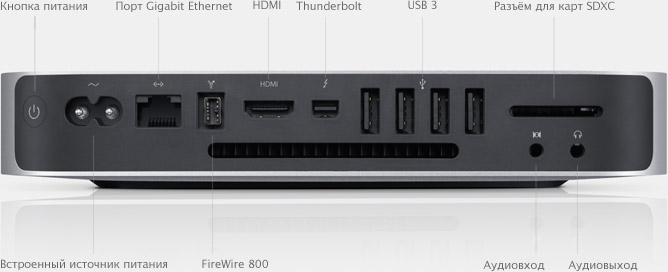

Возможности подключения и расширения

  • Порт Thunderbolt (до 10 Гбит/с)
  • Порт FireWire 800 (до 800 Мбит/с)
  • Четыре порта USB 3 (до 5 Гбит/с)
  • Порт HDMI
  • Разъём для карт SDXC
  • Порт Gigabit Ethernet
  • Аудиовход/аудиовыход
  • ИК-приёмник

Связь

  • Wi-Fi
    Подключение к сети Wi-Fi стандарта 802.11n 3 ; совместимость со стандартом IEEE 802.11a/b/g
  • Bluetooth
    Беспроводная технология Bluetooth 4.0
  • Ethernet
    Модуль 10/100/1000 BASE-T Ethernet (разъём RJ-45)

Требования к электросети и среде эксплуатации

  • Частота: от 50 до 60 Гц, однофазный ток
  • Номинальная мощность: 85 Вт
  • Температура при эксплуатации: от 10 до 35 °C
  • Температура при хранении: от -40 до 47 °C
  • Относительная влажность: от 5 до 95% без конденсации
  • Максимальная высота эксплуатации: 3000 м
  • Стандартная акустическая характеристика, звуковое давление (в месте расположения пользователя): 4
    • 16 дБА в режиме ожидания
  • Ограниченная гарантия и обслуживание

    На каждый Mac mini распространяется ограниченная гарантия сроком на один год и предоставляется 90 дней бесплатной поддержки по телефону. Приобретая План AppleCare Protection Plan, вы расширяете набор предоставляемых услуг и увеличиваете срок обслуживания до 3 лет с момента приобретения компьютера. Только при приобретении Плана AppleCare Protection Plan вы получаете право на прямую телефонную поддержку специалистов Apple и гарантию того, что ремонтные работы будут выполнены авторизованными специалистами Apple и с использованием фирменных деталей Apple. Для получения более подробной информации посетите веб-сайт поддержки Apple или позвоните по телефону (495) 580-95-57.

    Комплект поставки

    • Mac mini
    • Адаптер HDMI — DVI
    • Шнур питания

    Встроенное программное обеспечение

    • Система OS X Server: включает Server, Xsan, файловый сервер, сервер календаря, сервер контактов, почтовый сервер, NetInstall, DNS, DHCP, Open Directory, Profile Manager, VPN Server и Wiki Server. Подробнее об OS X Server
      • Обмен файлами
      • Менеджер профилей
      • Time Machine
      • Wiki Server
      • Сервер календаря
      • Сервер контактов
      • Почтовый сервер
      • Сервер сообщений
      • Xsan 3
      • Сервер VPN
      • Сервер обновления ПО
    • OS X Mountain Lion: Самая совершенная в мире компьютерная операционная система. Подробнее
      • App Store для Mac
      • Safari
      • Mail
      • Сообщения
      • Календарь
      • Контакты
      • Напоминания
      • Заметки
      • Time Machine
      • FaceTime
      • Photo Booth
      • Game Center
      • iTunes
      • iLife: iPhoto, iMovie и GarageBand.

    Окружающая среда

    При расчёте воздействия на окружающую среду компания Apple учитывает все этапы жизненного цикла устройства. Подробнее

    Следующие особенности Mac mini позволяют снизить воздействие на окружающую среду:

    • Не содержит бромированных огнестойких добавок
    • Не содержит ПВХ 5
    • Корпус из алюминия, пригодного для вторичной переработки
    • Отвечает требованиям ENERGY STAR 5.2
    • Награждён сертификатом EPEAT Gold 6

    Apple и окружающая среда

    Узнайте подробнее о деятельности Apple, направленной на снижение влияния продукции и процесса её производства на окружающую среду. Или же ознакомьтесь с Отчётами о воздействии продукции на окружающую среду, в которых описаны экологические характеристики всех продуктов Apple.

    Вторичная переработка

    Apple придерживается целостного подхода к управлению материальными ресурсами и сокращению объёмов производственных отходов. Узнайте, как сдать отслуживший свой срок Mac или PC на переработку.

    Акустическая характеристика

    ЗАЯВЛЕННЫЕ ШУМОВЫЕ ХАРАКТЕРИСТИКИ соответствуют требованиям ISO 9296
