Segmented control in android

Segmented control in android

Android-Segmented is a custom view for Android which is based on RadioGroup and RadioButton widget. This implementation is inspired by Segmented Controls for iOS.

Including in your project:

Download source code and import as module

The latest code has bug fixes, iOS 7’s (and up) style segment control (which has nice fade animation and tint) and support for Font Awesome. (These features has not been pushed to Maven yet)

Android-Segmented Library is pushed to Maven Central, so you just need to add the following dependency to your build.gradle .

Copy(or merge) below files into corresponding file/folder:

• SegmentedGroup.java
• res/drawable/*
• res/drawable-v14/*
• res/values/colors.xml
• res/values/dimens.xml
• res/values/styles.xml (only RadioButton style)

Define in xml like this and make sure that the RadioButton ‘s style is: @style/RadioButton

You also can be change the tint color and title color when button is checked by setTintColor method. Here is sample code:

If you dont specify border_width and/or corner_radius the default values will be used (1dp for border_width and 5 dp for corner_radius)

• Le Van Hoang (@hoang8f)
• Added support for vertical RadioGroup by tchar.

Источник

Segmented control in android

Segmented Button is a IOS-like «Segmented Control» with animation.
For more Android-like segmented control, check Radio Real Button.

You can also apply your custom drawable on button group

It is now possible to drag selector

Add it to your build.gradle with:

Option Name	Format	Description
app:sb_imageTint	color	Set tint onto button’s image
app:sb_imageScale	float	Scale button’s image
app:sb_selectedImageTint	color	Set tint onto button’s image if selector on it
app:sb_selectedTextColor	color	Set color onto button’s text if selector on it
app:sb_rippleColor	color	Set ripple color of button

Segmented Button Group

Option Name	Format	Description
app:sbg_ripple	boolean	Set ripple color for every button
app:sbg_rippleColor	color	Set ripple color for every button with custom color
app:sbg_selectorImageTint	color	If selector on it, set tint onto image for every button
app:sbg_selectorTextColor	color	If selector on it, set text color for every button
app:sbg_selectorColor	color	Set selector color
app:sbg_dividerSize	dimension	Set divider size
app:sbg_dividerPadding	dimension	Set divider padding for top and bottom
app:sbg_dividerColor	color	Change divider color
app:sbg_dividerRadius	dimension	Round divider
app:sbg_shadow	boolean	Shadow for container layout (api21+)
app:sbg_shadowElevation	dimension	Shadow for container layout (api21+)
app:sbg_shadowMargin	dimension	Set margin to make shadow visible (api21+)
app:sbg_position	integer	Set selected button position
app:sbg_radius	dimension	Make layout rounder
app:sbg_backgroundColor	color	Set background color of container (except transparent color)
app:sbg_animateSelectorDuration	integer	Set how long selector travels to selected position
app:sbg_animateSelector	integer	Set selector animation (ex. bounce animation)
app:sbg_borderSize	dimension	Add border by giving dimension
app:sbg_borderColor	color	Change border color (Default: Grey)

• fastOutSlowIn
• bounce
• linear
• decelerate
• cycle
• anticipate
• accelerateDecelerate
• accelerate
• anticipateOvershoot
• fastOutLinearIn
• linearOutSlowIn
• overshoot

These animations can be set using the attribute noted above like so: app:sbg_animateSelector=»bounce» . Also make sure to play with the app:sbg_animateSelectorDuration attribute to get the animation to look exactly how you want it.

Источник

Segmented control in android

Android SegmentedControl + multi row support + multi selection

Segmented control for Android, with a lot of customization properties

Add to project level build.gradle

Add dependency to app module level build.gradle

Simple usage in XML

Note: After every configuration change call segmentedControl.notifyConfigIsChanged() method

SegmentedControl uses SegmentAdapter and SegmentViewHolder for displaying segments. There are allready exist a default implementations for SegmentAdapter (SegmentAdapterImpl) and SegmentViewHolder (SegmentViewHolderImpl), but if you want to make your custom implementation. well here is the steps

Define segment_item.xml inside layouts folder

Create a SegmentViewHolder instance ( AppSegmentViewHolder ) (here I define the segment generic data type as a String)

Create a SegmentAdapter instance

Pass the adapter to the segmentedControl

Finally add segments data.

For custom implementation use SegmentedControlUtils helper class in order to define segment background type and background radius.

Источник

Revealing the magic of Creating iOS Alike Segmented Control with Image in Android (Kotlin)

Nov 4, 2017 · 4 min read

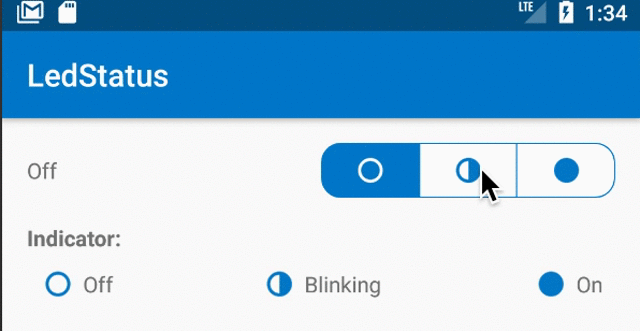

Scenario: There are three LED statuses for a user to choose from, i.e off, blinking and on. Led status is updated based on user’s selection. A selected status will be shown with blue background with a white-coloured icon.

In iOS, we can achieve this by using Segmented Control. What about Android?

First thought in mind is Button view.

Button or ImageButton?

Based on Android Developers official API guide for Input controls, ImageButton would be the best option for this scenario.

The image on the surface of the button is defined either by the android:src attribute in the XML element or by the setImageResource(int) method.

As describe in the API guide, we can also custom the image button background by defining a different image for each state.

Implementation

* I n this example, @color/colorPrimary is set to #0077c8, which is described as “blue” in this passage

S tep 1: XML layout

Three image buttons are placed in a horizontal oriented LinearLayout.

The surface image for the button is defined with a selector file which contains led images with two different states: selected and not selected.

For eg, in drawable/selector_led_status_off (surface image for “Off” button)

*P/S: Blinking and on button implement the same rules for selector as above with different sets of icon assets

android:background attribute in the XML element is used to defined the background colour based on the user’s selected state. The selected image button for this example is blue in colour.

(i) Background Attribute with a Solid Colour

For normal implementation, the selector for background colour can be set by simply implementing

Источник

Segmented control in android

Android view that mimics iOS’s SegmentedControl

• Customizable text color, size and font
• Custom button drawables
• Customizable button dividers
• Solid and dashed border support
• Ripple effect on button tap
• Draggable buttons
• Animations
• Support for API 16+

This project is originally forked from ceryle/SegmentedButton but has been revamped and given some TLC. The parent repository has been stagnant since October 17th, 2017.

Code for all images can be found in the sample project

Add it to your build.gradle with:

Note: The $LATEST_VERSION string should be replaced with the latest version. The available versions can be found here: https://jitpack.io/#addisonElliott/SegmentedButton

Note: This library uses the AndroidX packages rather than the older Android support libraries. Periodic releases with the Android support library will be released based on user demand with the version appended with -support (e.g. 3.1.2-support for $LATEST_VERSION ). It is strongly recommended to upgrade your project to AndroidX to obtain the latest features & bug fixes.

Note: Java 8 is required to use this library. This can be done by adding the following code to build.gradle while using the Android plugin with a version of 3.0.0 or higher.

Check out the sample project for additional examples

Attribute	Format	Description
android:background	drawable|color	Set background for every button when unselected (default: transparent)
app:selectedBackground	drawable|color	Set background for every button when selected (default: transparent)
app:borderWidth	dimension	Width of border around button group
app:borderColor	color	Color of border
app:borderDashWidth	dimension	Width of dashes, 0 indicates solid line
app:borderDashGap	dimension	Width of gaps in dashes
app:selectedBorderWidth	dimension	Width of border around selected button in group
app:selectedBorderColor	color	Color of border for selected button in group
app:selectedBorderDashWidth	dimension	Width of dashes for selected button in group, 0 indicates solid line
app:selectedBorderDashGap	dimension	Width of gaps in dashes for selected button in group
app:radius	dimension	Radius of corners for button group
app:selectedButtonRadius	dimension	Radius of corners for selected button in group
app:position	integer	Default button that is selected
app:draggable	boolean	Whether or not buttons can be dragged to change selected state
app:ripple	boolean	Whether or not ripple effect is enabled for all buttons
app:rippleColor	color	Ripple effect tint color for each button
app:divider	drawable|color	Drawable or color to display for divider between buttons
app:dividerWidth	dimension	Width of the divider between buttons, 0 indicates no dividers
app:dividerRadius	dimension	Corner radius for divider to round edges
app:dividerPadding	dimension	Divider padding on top and bottom of divider
app:selectionAnimationDuration	integer	Duration in ms for change button selection animation
app:selectionAnimationInterpolator	enum	Type of animation used for changing button. Valid options are listed below

Option Name	Format	Description
android:background	drawable|color	Set background for button when unselected (default: transparent)
app:selectedBackground	drawable|color	Set background for button when selected (default: transparent)
app:rounded	boolean	Whether or not the button is rounded. Note: This is used to round BOTH sides of a button. The typical use case is for rounded buttons with a transparent background.
app:rippleColor	color	Ripple effect tint color when user taps on button
app:drawable	drawable	Drawable to display
app:drawablePadding	dimension	Padding between drawable and text
app:drawableTint	color	Tint color for drawable when unselected
app:selectedDrawableTint	color	Tint color for drawable when selected
app:drawableWidth	dimension	Width of drawable (default uses intrinsic)
app:drawableHeight	dimension	Height of drawable (default uses intrinsic)
app:drawableGravity	enum	Determines where drawable should be placed in relation to the text. Valid options are Gravity.LEFT , Gravity.TOP , Gravity.RIGHT , and Gravity.BOTTOM
app:text	string	Text to display on button
app:textColor	color	Color of text when button is unselected
app:selectedTextColor	color	Color of text when button is selected
app:textSize	dimension	Font size of text
android:fontFamily	font	Font for displaying text
app:textStyle	flag	Text style, can be Typeface.NORMAL , Typeface.BOLD , and Typeface.ITALIC
app:selectedTextStyle	flag	Selected text style, can be Typeface.NORMAL , Typeface.BOLD , and Typeface.ITALIC
app:linesCount	int	Maximum lines count, multiline by default, works with not-none ellipsize type
android:ellipsize	enum	Ellipsize type, can be none , start , middle , end , marquee , none by default

All layout attributes have a corresponding function in Java that can be called to change programatically. See Javadocs of source code for more information.

• fastOutSlowIn
• bounce
• linear
• decelerate
• cycle
• anticipate
• accelerateDecelerate
• accelerate
• anticipateOvershoot
• fastOutLinearIn
• linearOutSlowIn
• overshoot

These animations can be set using the attribute noted above like so: app:selectionAnimationInterpolator=»bounce» .

Issues and pull requests are encouraged.

This project is licensed under the Apache License Version 2.0 — see the LICENSE file for details

About

Segmented Control/Button with animation for Android API 16+
